Adding the Kanban Board web part to a SharePoint classic page

Wiki Page

Click “+New” and select “Wiki Page.”

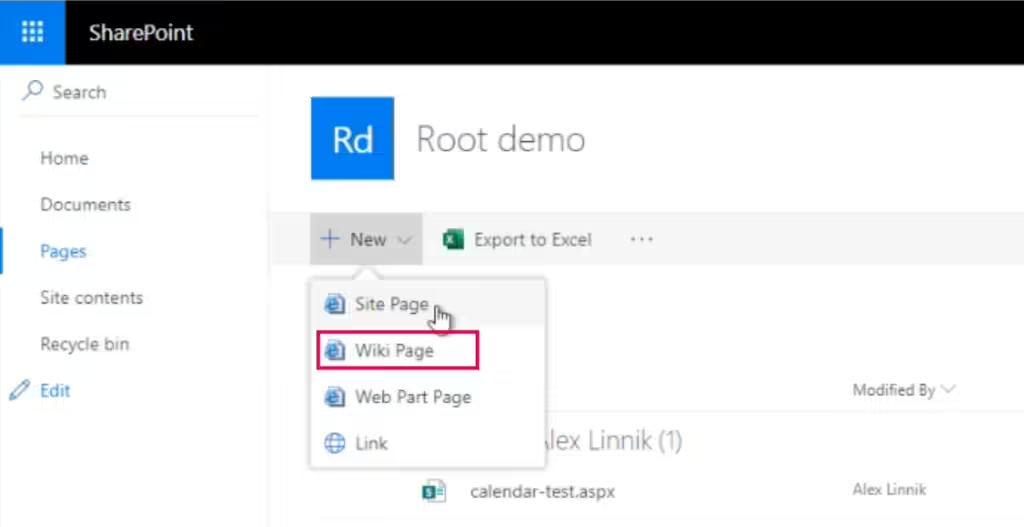

SharePoint +New menu expanded with the Wiki Page option to create a classic page

Give your page a name and click “Create”.

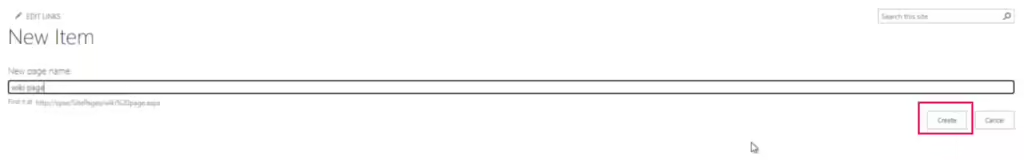

New wiki page dialog where you enter a page name and click Create in SharePoint

In the “Insert” tab, find and click the “Web Part” icon.

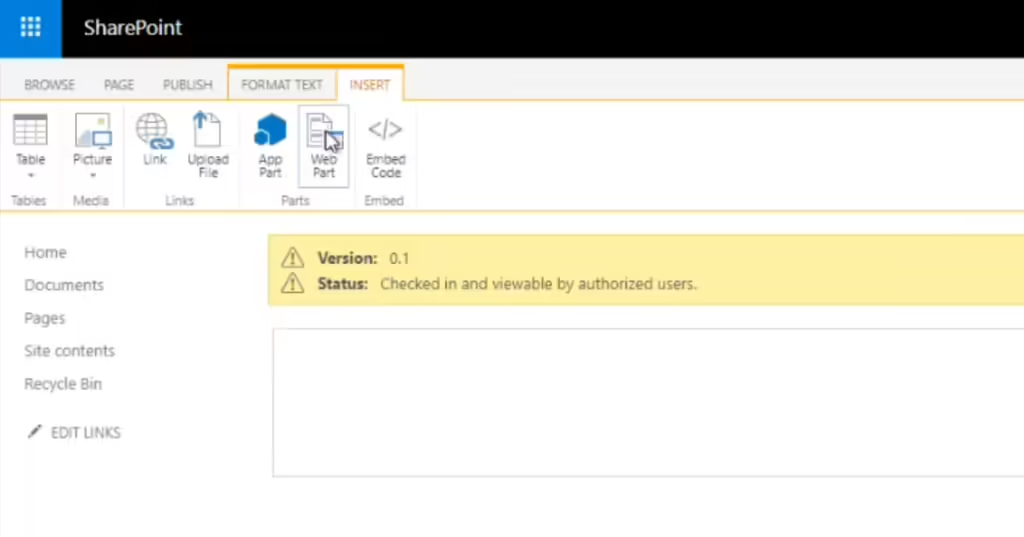

SharePoint Insert tab ribbon with the Web Part icon highlighted on a classic wiki page

In the Categories section, locate and click the “Virto Solutions” folder, then select “Virto Kanban Board” and click “Add.”

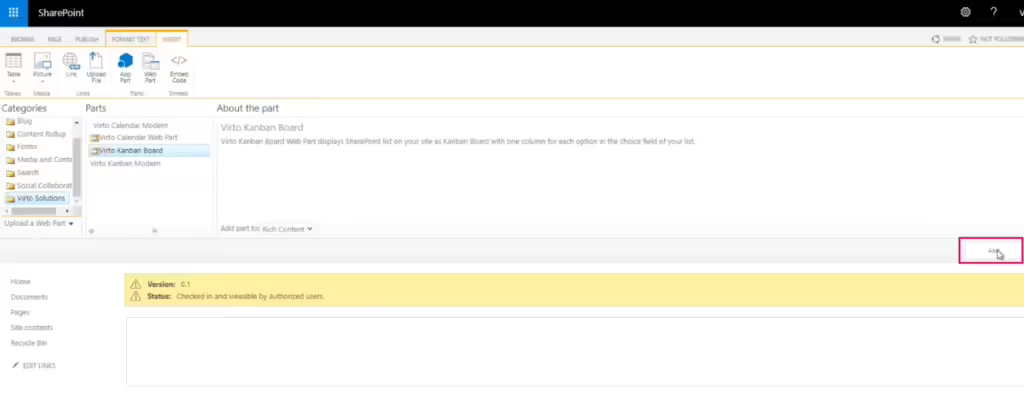

Virto Solutions category with Virto Kanban Board selected and the Add button in the web part picker

Click “Save” in the upper right corner.

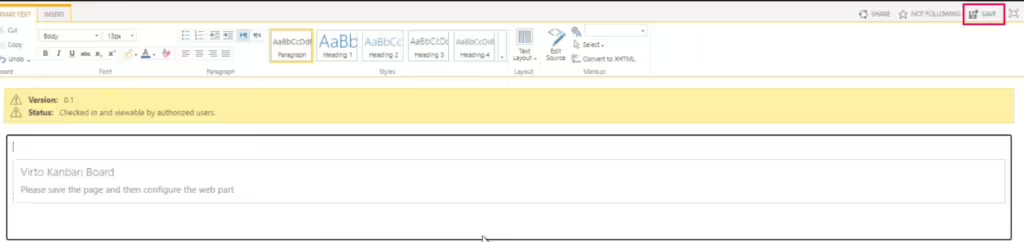

Save button in the upper right corner of a SharePoint classic wiki page

Your Virto Kanban board is now ready to use.

Web Part Page

Click “+New” and select “Web Part Page.”

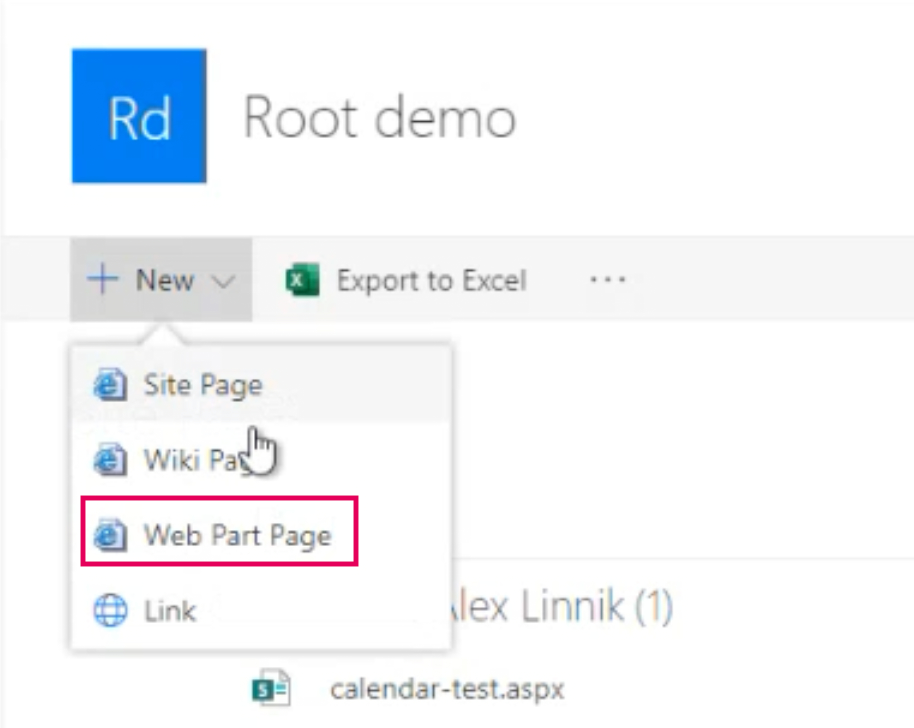

SharePoint +New menu expanded with the Web Part Page option selected

Enter the name of your page, choose a layout, and select the location where you want the Web Part Page to be saved.

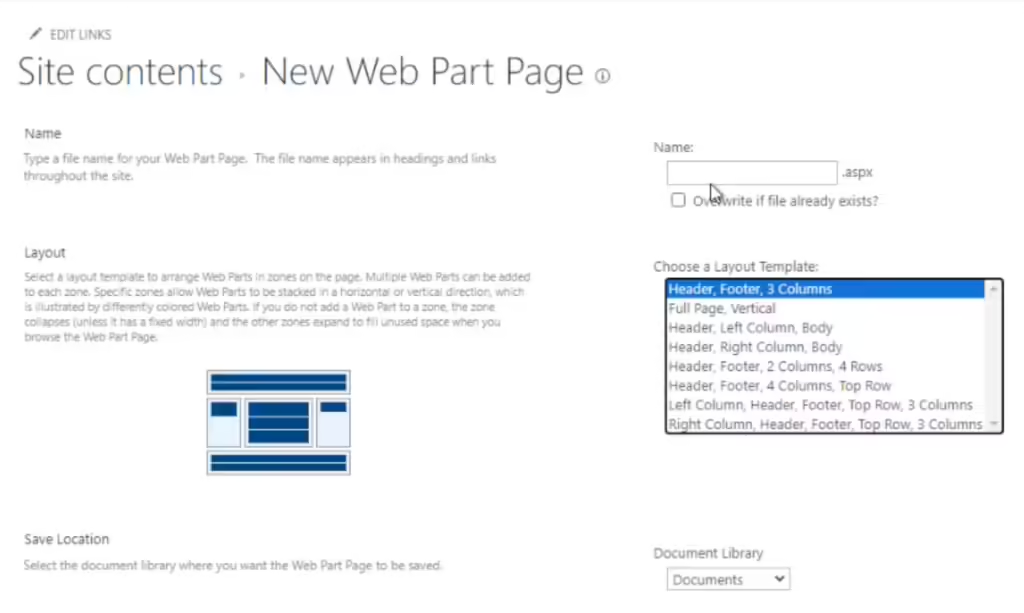

New Web Part Page form for entering a name, choosing a layout, and selecting a save location

Add your web part to any available location within the chosen template. Simply click “Add a Web Part” and follow the same two last steps described for a "Wiki Page."

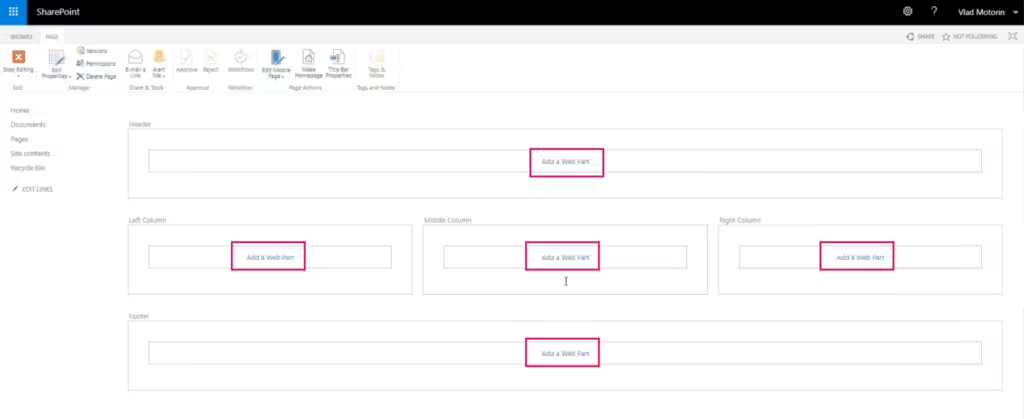

Web Part Page layout with Add a Web Part zones for placing the Virto Kanban Board

Connecting the board to another web part

On a classic page, the Virto Kanban Board web part can receive filter values from another web part. Edit the page, open the web part menu, select “Connections → Get Parameters From” and the provider web part, then map its value to a field of the board’s list. The board shows only the tasks matching the received values.

Script libraries

The “Script” section of the web part tool pane has the jQuery, jQuery UI, jQuery Migrate and AngularJS check boxes. They are selected by default and load the library versions used by the board. Clear a check box only when the page already loads the same library, for example to avoid conflicts with another web part.

Updated on November 12, 2026
