Columns

Columns visualize the workflow across the Kanban board.

Choose any of the choice fields from your source list for the set of columns. Typically, columns represent the status of a task, but you can select any other choice field.

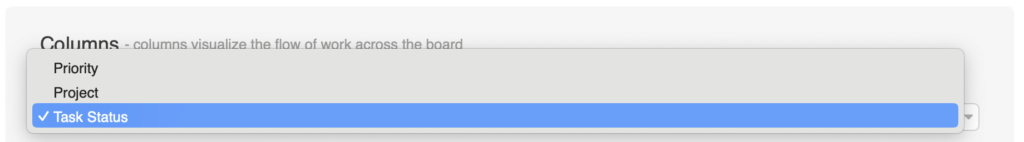

Choosing a source list choice field to define the set of columns on the Virto Kanban Board

Be cautious when changing the set of columns or renaming them. For example, if you change the columns from task status to another choice field and rename them, your task cards may lose their status. In this case, change the column value back to “Task Status.”

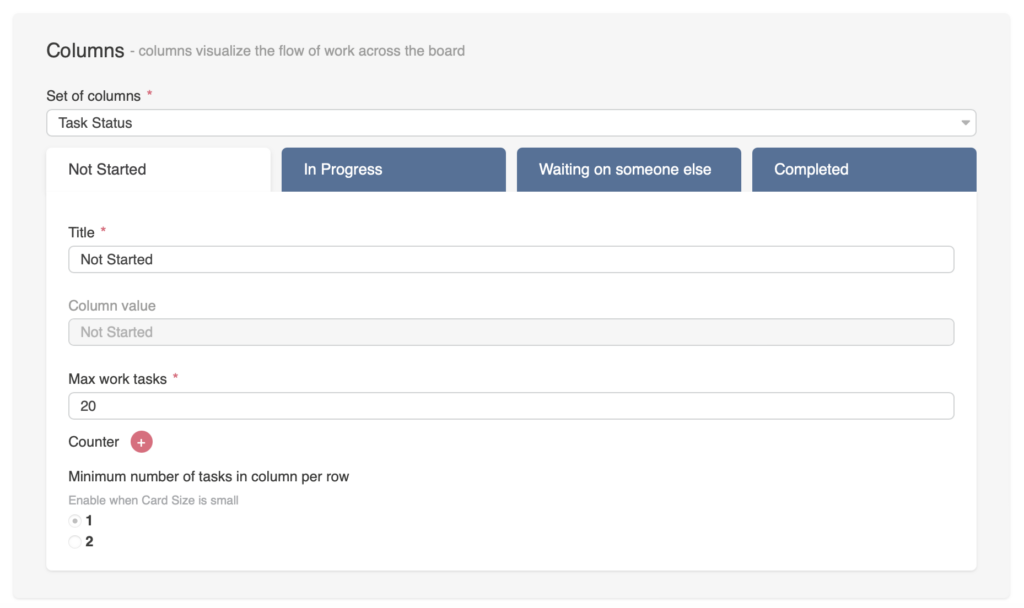

Task Status choice field selected as the column set for the Kanban board
Task status

Once you’ve selected a field for your columns, you can adjust their order. Click the “…” next to a column name to move columns left or right, or to delete them. You can also re-insert columns you have previously deleted.

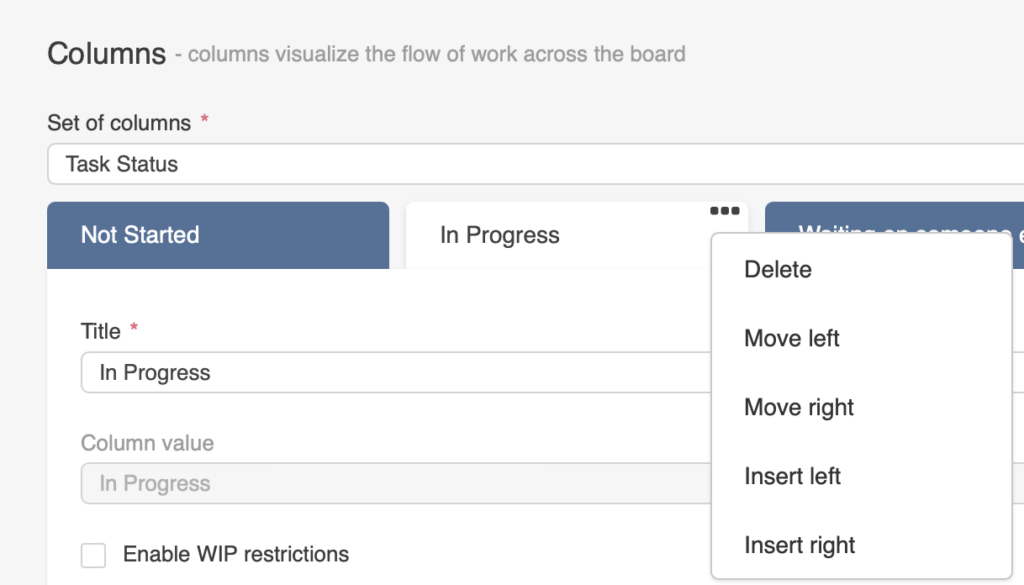

Column menu in Virto Kanban Board to move a column left or right, delete it, or re-insert it
Move columns

You can define a custom title for each column, while the column name remains unchanged in the list.

Set a work-in-progress (WIP) limit.

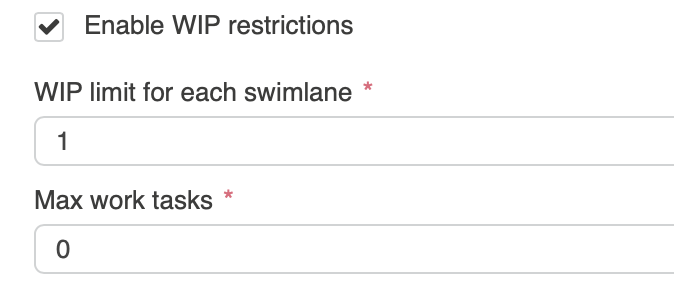

Setting a work-in-progress (WIP) limit for a Kanban column so the task count turns red when exceeded
WIP limit

Under each column (in each swimlane cell) the board shows the number of tasks, for example Tasks: 2, and the WIP limit, for example WIP limit: 1000. When the WIP limit is exceeded, the number of tasks is shown in red.

Counters under two Kanban columns: Tasks: 3 under the first column, which has no WIP limit, and Tasks: 2 with WIP limit: 1000 under the next one
Task count and WIP limit

The first and last columns do not have a WIP limit.

Select “Enable WIP restrictions” to turn the WIP limit into a hard limit. When a column in a swimlane reaches the limit, the "+" button is hidden and tasks cannot be added or moved to it. Without this option, the WIP limit only highlights the task count. The default swimlane has no limit; 0 means no limit.

The “Max work tasks” is the maximum number of tasks shown in a column. If you set it to 0, all tasks are shown. This feature is useful when working with large lists with many tasks in a column.

The difference between the WIP limit and Max work tasks is that the WIP limit counts the tasks in a column and, with “Enable WIP restrictions”, blocks new ones, while “Max work tasks” only limits how many tasks are shown.

This option is available when you choose the small size of tasks on the board.

The “Minimum number of tasks in column per row” option allows you to set the number of tasks that will fit in the selected column.

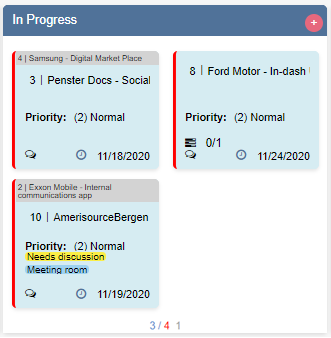

For example, if you set three max work tasks for a column, only three tasks will be displayed, even if there are four.

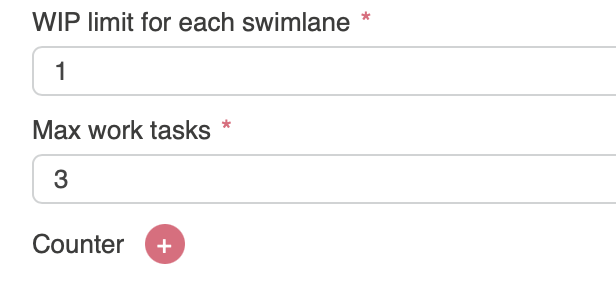

Max work tasks setting limiting the maximum number of tasks displayed in a Kanban column
Max work tasks

When “Max work tasks” hides some tasks, the counter shows the shown and total numbers, for example Tasks: 2 / 3; click it to show all tasks. Click it again to collapse the column according to the max work tasks count.

Kanban column with Max work tasks set to 2: two task cards are shown and the counter reads Tasks: 2 / 3 with WIP limit: 1000; clicking the counter shows all tasks
Maximum numbers

You can use the counter feature to aggregate data from columns. The Virto Kanban Board web part offers two functions: “Sum” and “Average.”

This feature is useful if a task has an “Hours” field (a custom number field) that specifies the time required to complete a task. Click “+” next to “Counter” and select the “Hours” field and the “Sum” function (or use the “Average” function to calculate the average value). The total time required to complete tasks will be displayed above all tasks in the column.

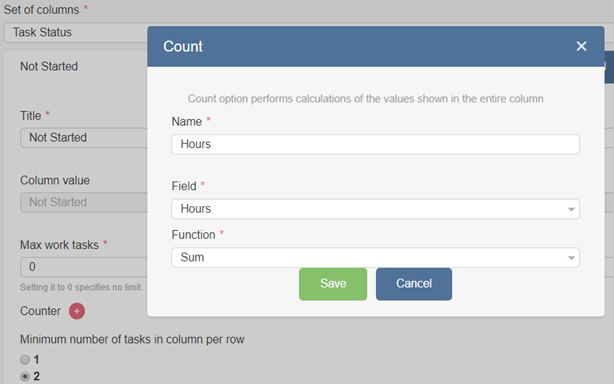

Adding a column counter in Virto Kanban Board using the Sum or Average function on a number field
Counter

Click “+” next to “Counter” and set the values in the pop-up window, then click “Save” to apply the settings.

The selected task field must contain a numeric value.

Now, the total counter will show the total number of hours required to complete the tasks in the “In Progress” column.

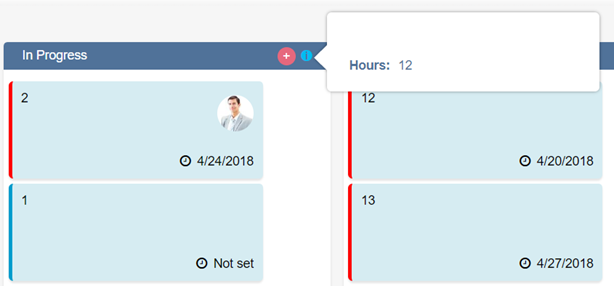

Total counter showing the summed hours of tasks above the In Progress column on the Kanban board
Total counter

Click the cross icon next to the counter name to delete it.

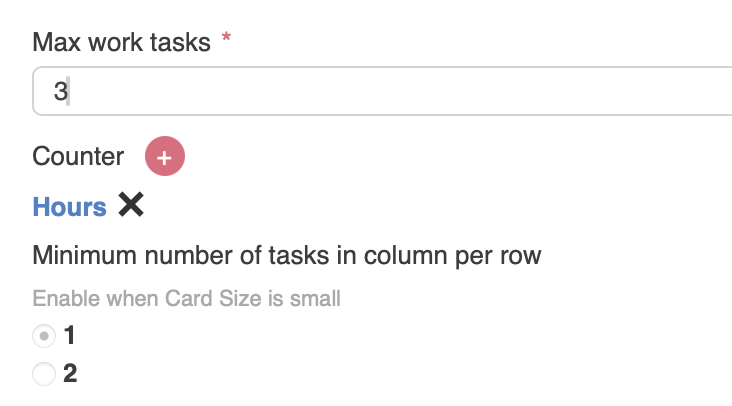

Cross icon next to a counter name used to delete the column counter on the Kanban board
Delete counter

If the board has swimlanes, the counter will be applied to each cell (the part of a column within a swimlane).
